45KW Motor Gabion Wire Mesh Machine , 40 R / Min Metal Flattening Machine

Name: 45KW Motor Gabion Wire Mesh Machine 40 R Min Metal Flattening Machine
Brand: Anao
Price: 1 USD

China 45KW Motor Gabion Wire Mesh Machine , 40 R / Min Metal Flattening Machine wholesale

Brand Name : Anao

Model Number : JQ25-160

Certification : CE,ISO9001

Place of Origin : Hebei China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 2 - 3 sets per month

Delivery Time : 30 days after receiving deposit or L/C

Packaging Details : Container

Product : Expaned Metal Machine JQ25-160

Working Width : 2500mm

Material Thickness : 0.5 - 6.0mm

Distance Of Feeding : 0 - 10mm

Working Speed : 40/min

Motor : 45KW220/380v 50Hz

Contact Now

2.5m Width Expanded Metal Machine JQ25-160 With Max Thickness 6mm

Introduction:

Our company have various of expanded metal machine types.The same punching presure also designed different types.Expanded metal machine JQ25-160 except 2m width type also designed 2.5m working width type,and 2.5m working width JQ25-160 the max thickness is 6mm.

Technical parameter:

Expanded metal machine JQ25-160 (2.5m)
Working width	2500mm
Material thickness	0.5-6.0mm
Distance of feeding	0-10.0mm
Working speed	40/min
Motor	45KW 220/380v 50Hz
Weight	17000KG
Measurement	4150mm1500mm2560mm(Main machine) 2650mm1940mm700mm(Secondary machine)

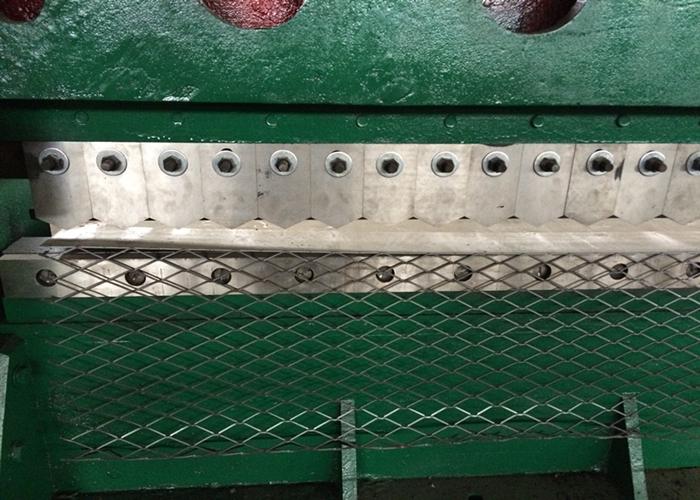

Expanded metal machine JQ25-160 (2.5m) cutters:
